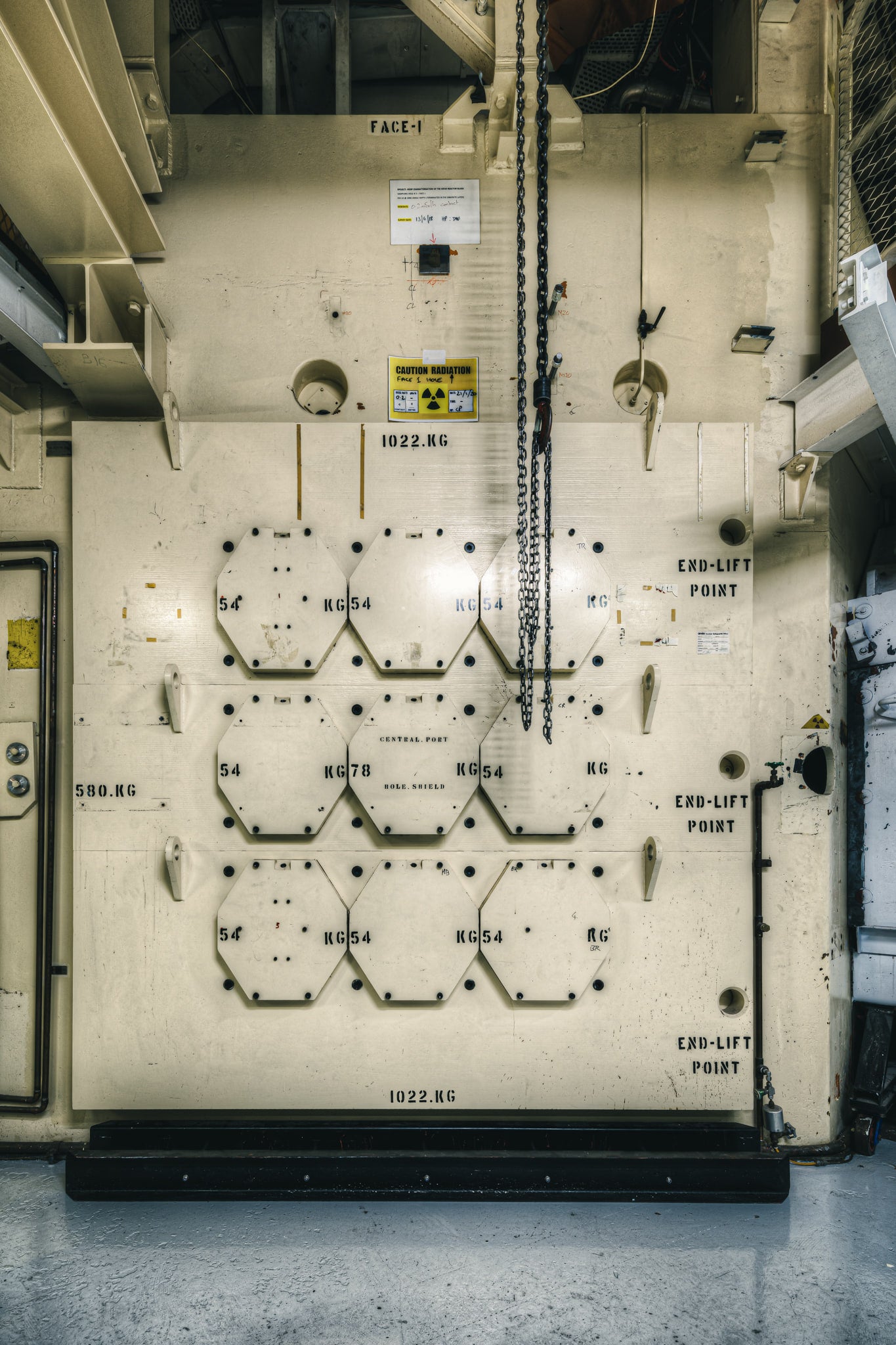

This loading mechanism at ANSTO HIFAR was used to insert experimental rigs into the graphite space within the reactor. Designed for precision, each rig, approximately 750mm long, was carefully positioned to undergo neutron irradiation, facilitating research and material testing in a controlled environment.
The shielding blocks and loading system played a crucial role in ensuring safe and accurate placement while maintaining strict radiation protection protocols. Every component was engineered to manage high-precision experimental processes within the reactor core.
Perfect for those fascinated by nuclear research and industrial engineering, this print offers a rare insight into the specialized mechanisms that supported Australia’s pioneering reactor experiments.
