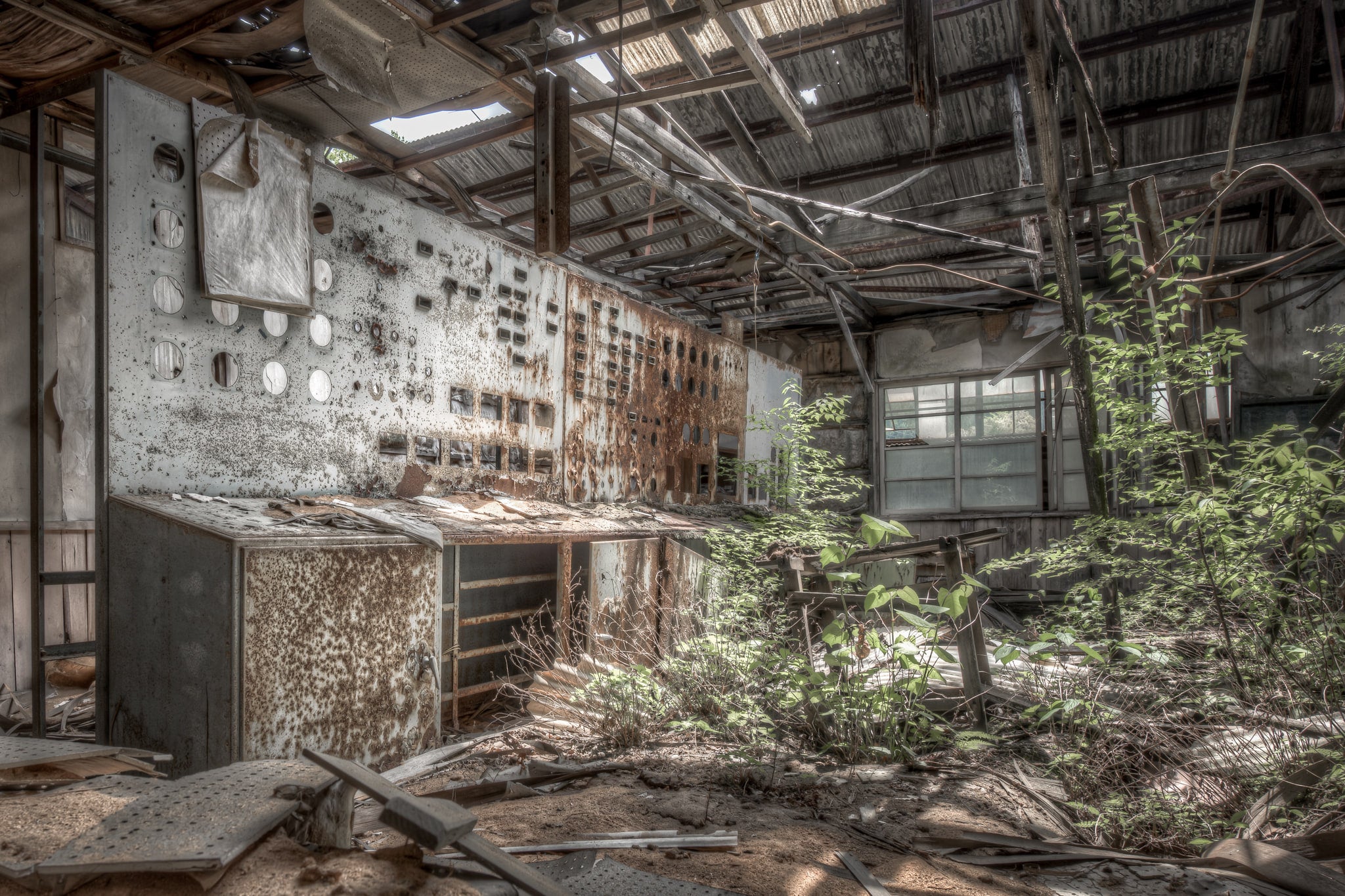

Control Room at Ashio Copper Mine, a steel control panel stretches along the left wall, its face pocked with mould and rust.

01 Ashio Copper MineAshio2016

ISO 1001/25f/9.019mm

Series · 25 prints

Ashio Copper Mine

Photographed 2016
Frames 25
Camera NIKON D810
Location Ashio, Tochigi, Japan
Status Disused; closed 1973
Years 1921 to 1973
Specs 105 tonnes an hour · 3 thickeners 35 m across · Heavy-liquid separation from 1948
01 ABOUT THIS SERIES

Series story

Map · Mapbox · OpenStreetMap

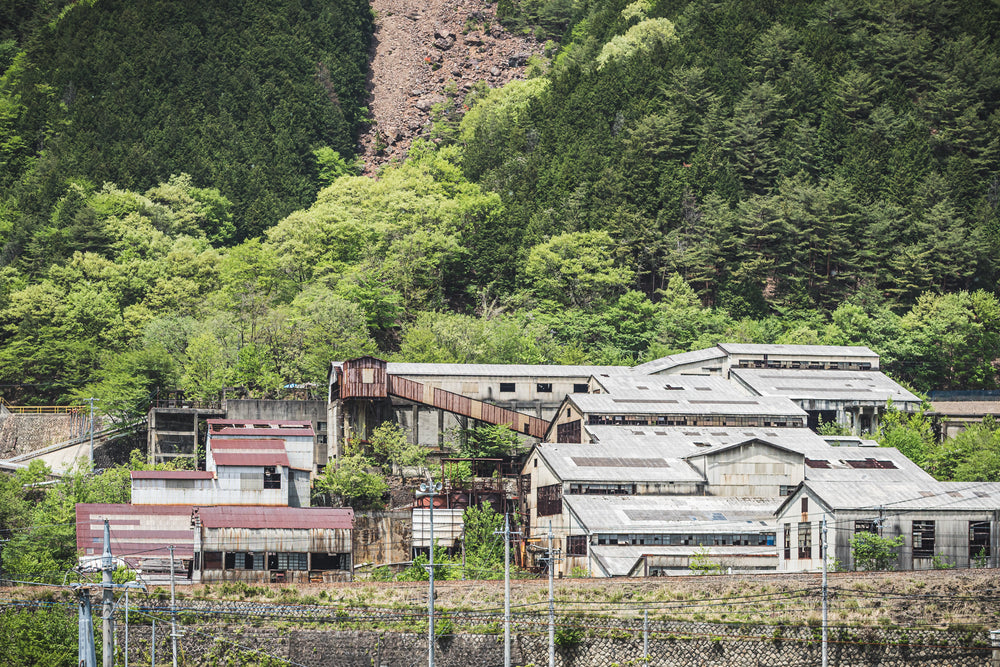

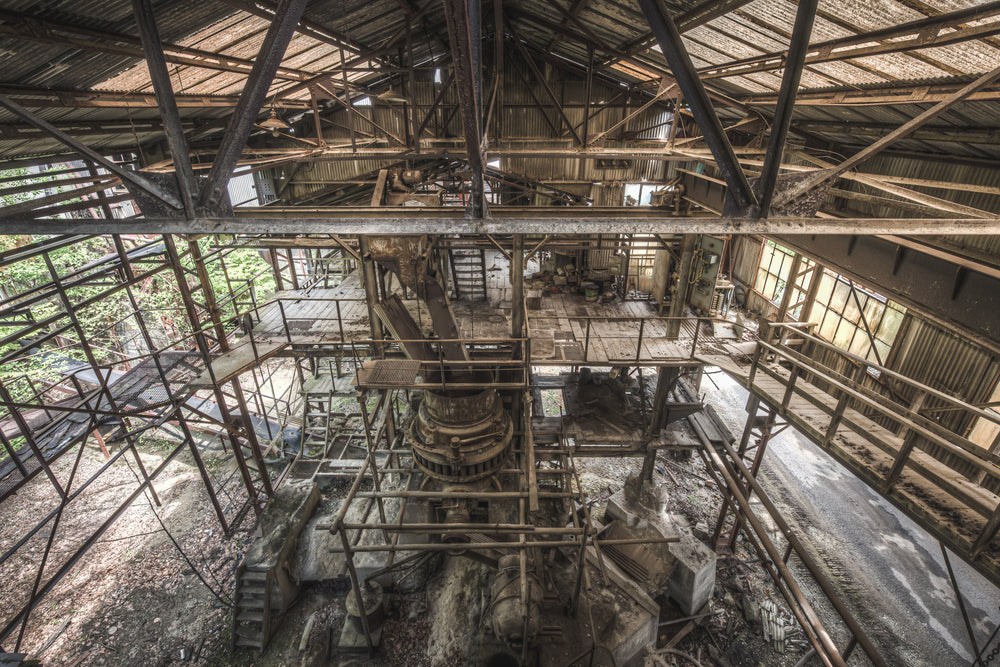

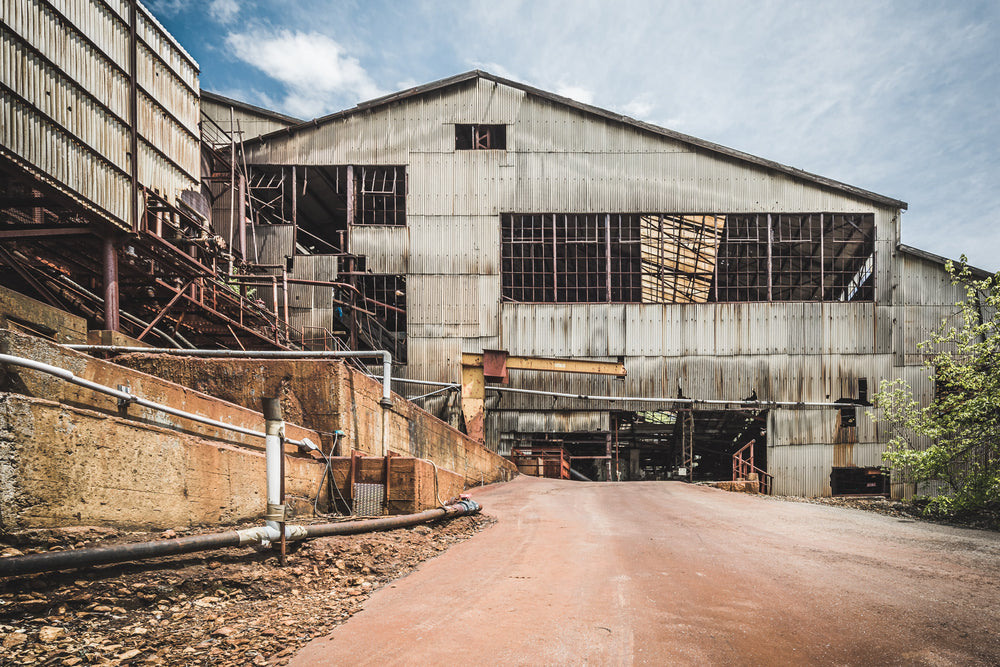

Ashio Copper Mine was a copper mine at Ashio in Tochigi Prefecture, Japan, run by Furukawa from 1877 until it closed on 28 February 1973. The photographs are of the Tsudō Ore-Dressing Plant within it, where ore from the workings was crushed, ground in ball mills and floated into concentrate for the Honzan smelter. From May 1921 all of the mine's ore dressing was done here. The plant steps down the hillside above the Watarase River, with 3 thickeners 35 m across standing outside it.

From 1884 Ashio Copper Mine had Japan's largest copper output, and in the early 20th century it supplied about a quarter of the country's copper. Dressing was done at first at plants at the Honzan, Kotaki and Tsudō adits, and froth flotation came in at Honzan and Tsudō from 1917. The Kotaki plant closed in July 1920 and the Honzan plant in May 1921, and the Tsudō Ore-Dressing Plant became the central plant for the whole mine. A second line added in 1923 let it run 24 hours a day, and it was rated a model for the dressing plants of Japan's metal mines.

A new plant was completed in November 1935 and running by December. It took 55 tonnes of ore an hour, and with the older works the Tsudō Ore-Dressing Plant could treat 105 tonnes an hour, 1 million tonnes a year. Heavy-liquid separation went into commercial use here in 1948, the first at a Japanese mine after the war.

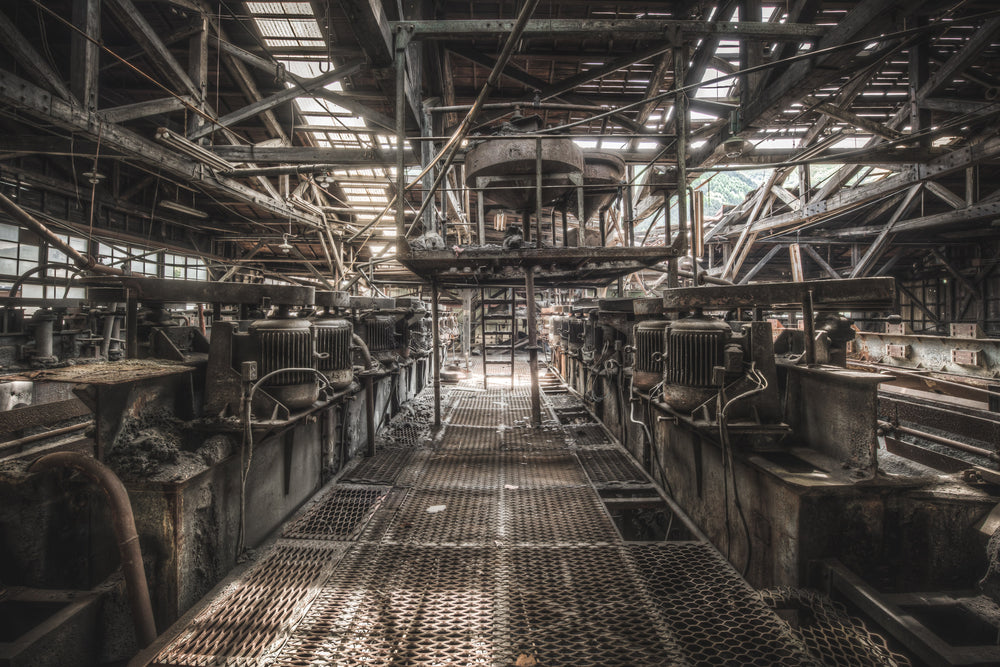

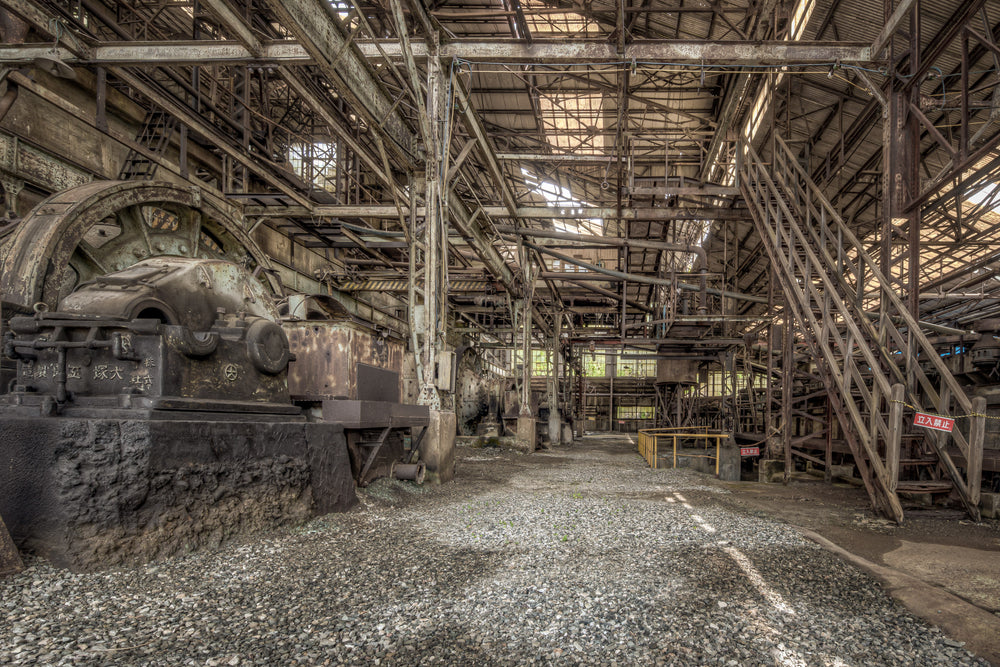

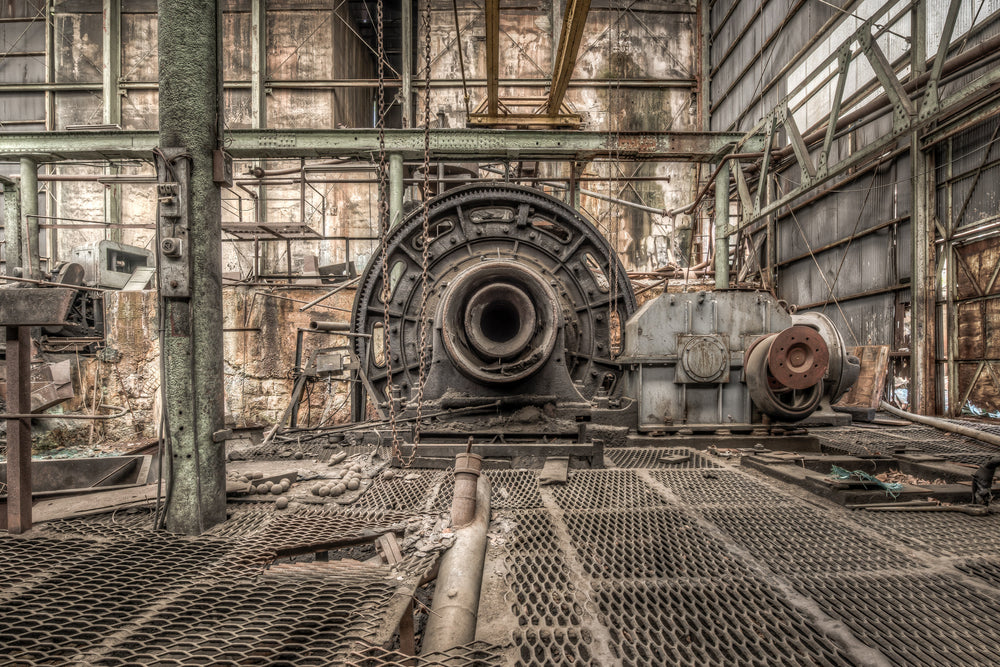

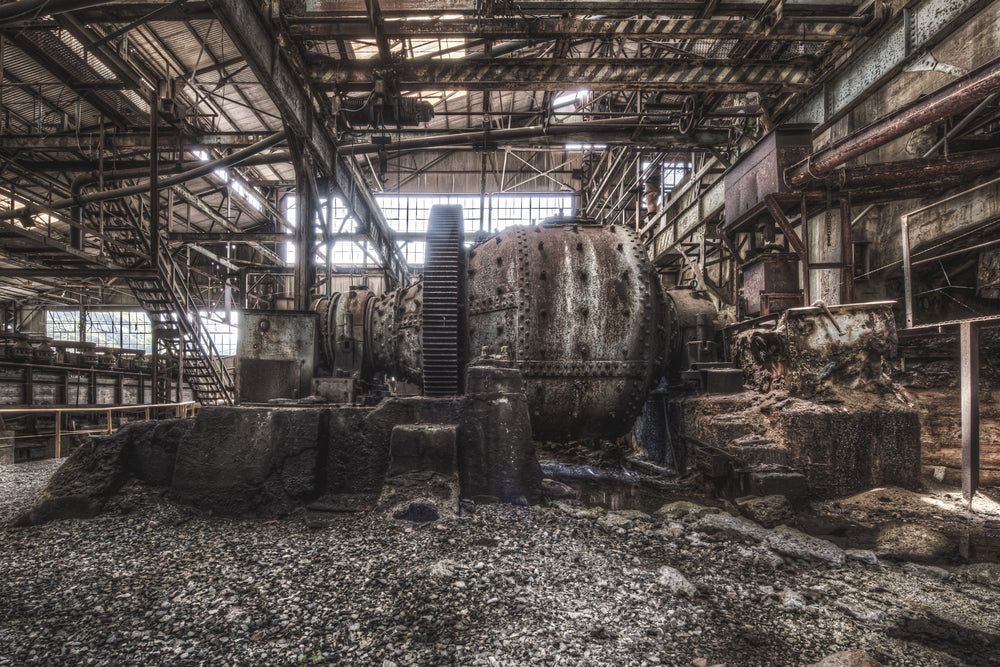

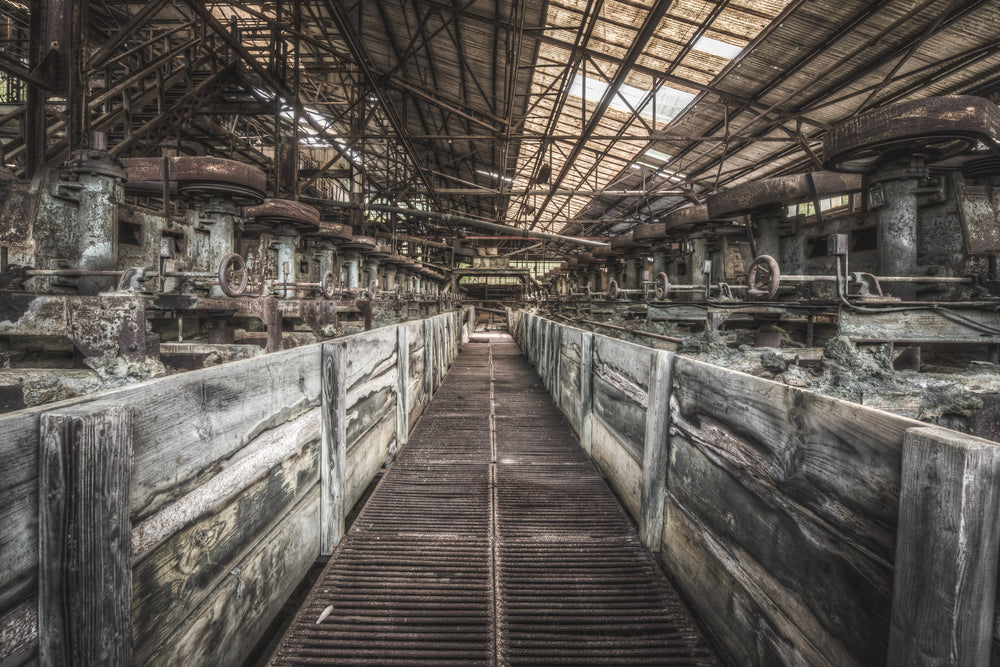

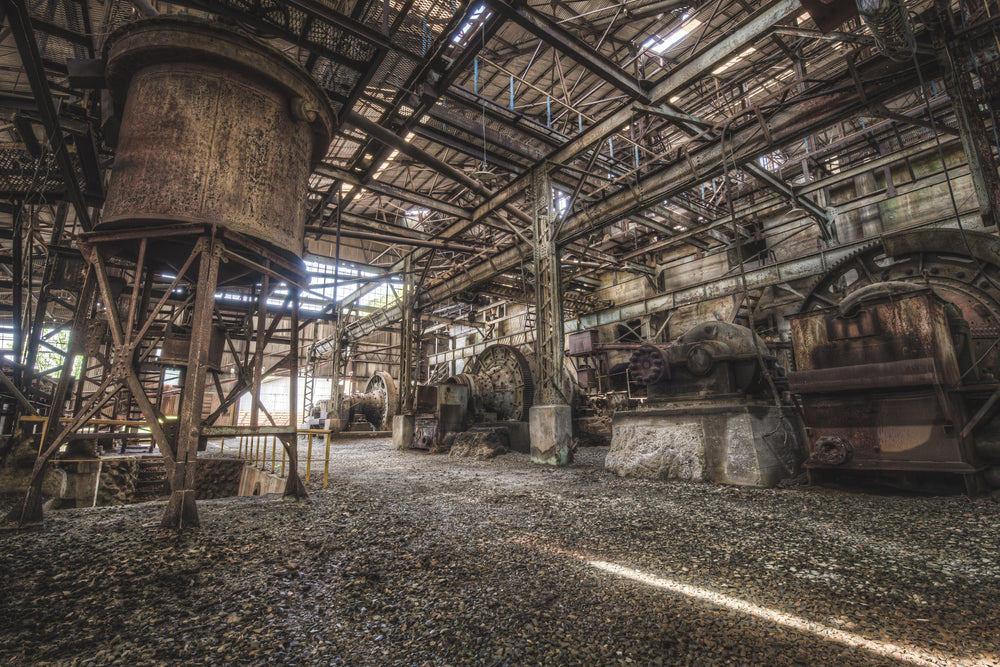

Ashio Copper Mine closed on 28 February 1973 and the Tsudō Ore-Dressing Plant ended its work with it. Part of the plant was pulled down; the main buildings stand, with ball mills and FW-type flotation machines inside, a stepped hillside dressing plant of the Taishō and early Shōwa periods. In 2007 the Ministry of Economy, Trade and Industry named it among the 22 Ashio items in its Modern Industrial Heritage Groups. The National Historic Site designation of 2008, extended in 2014, covers the Tsudō Shaft, the Utsuno powder magazine and 4 Honzan sites, not the dressing plant.

Furukawa Machinery & Metals corporate history, Nikkō City (The history of the Ashio Copper Mine), Nikkō City Board of Education (Pollution Control Heritage Sites of Ashio Copper Mine 2019) and Agency for Cultural Affairs database (Ashio Copper Mine Site)

02 TIMELINE

Chronology

1915
1916
1917
1919
1920
1921
1923
1935
1948
1960
1973
2007
03 PRINTS

Prints in this series

Hand-signed and numbered, printed from the original RAW file. Open editions in the two smallest sizes; limited editions of 100, 50 and 25 in the three larger, never reissued once they sell through.

04 ABOUT THE PRINTS

How they’re made

Made to order by Brett in Sydney, from the original RAW file. Each print is hand-signed and numbered before it ships.

Paper

Ilford Galerie cotton rag, 310 gsm. Acrylic on metallic gloss, 260 gsm.

Editions

Open in XS and S. Limited in M (100), L (50), XL (25). From $100.

Print tiers →

Lead time

Unframed: 5 to 10 business days. Framed and acrylic: 10 to 20.

05 BACKGROUND

Notes on the site

A wet-smelting test plant

In December 1925 Furukawa applied for a wet-smelting test plant at the Tsudō No. 2 plant. Concentrate and slime from a settling pond and the Hara tailings dump were to be roasted to copper sulphate, leached in dilute sulphuric acid and the copper won by electrolysis, a process said to consume nearly 95% of the sulphur dioxide at Ajo in the United States. Finished on 16 June 1926, it was tested into the Shōwa era and never reached practical use.

Source 7

A zinc plant on the site

In 1925 the main ore body then being worked began to yield sphalerite, a zinc ore, and a zinc dressing plant was built on the Tsudō No. 2 site with flotation and a magnetic separator. From that year copper ore went through the No. 2 plant and zinc ore through the zinc plant. By about 1928 clay-bearing copper ore from one part of the field was dragging down recovery, and selective flotation was tested in and beside the zinc plant.

Source 7

Tailings by ropeway

Waste from the Tsudō Ore-Dressing Plant left by aerial ropeway. The Hara tailings dump, opened in 1917, took slime from the plant for more than 40 years, and in 1939 the Arigoshi towers were built as pylons for the ropeway that carried slurry from the plant to the dumps. When the Sunokobashi tailings dam was finished in 1960 the haul went over to trucks and the ropeway's work ended.

Source 5

06 REFERENCES

Sources and further reading

  1. 01
    近代化産業遺産群33 (Modern Industrial Heritage Groups 33), Story 12, pp. 44 to 46経済産業省 (Ministry of Economy, Trade and Industry) · 2007meti.go.jp/policy/mono_info_service/mono/creative/kindaikasangyoisan/pdf/isangun.pdf
    T1
  2. 02
    足尾銅山跡 通洞坑 宇都野火薬庫跡 本山坑 本山動力所跡 本山製錬所跡 本山鉱山神社跡 (Ashio Copper Mine Site, Historic Site record)文化庁 国指定文化財等データベース (Agency for Cultural Affairs, National Cultural Heritage Database) · 2008online.bunka.go.jp/db/heritages/detail/218469
    T1
  3. 03
    沿革 (Corporate history)古河機械金属株式会社 (Furukawa Machinery & Metals Co., Ltd)furukawakk.co.jp/corporate/history.html
    T1
  4. 04
    足尾銅山の歴史 (The history of the Ashio Copper Mine)日光市 教育委員会事務局 文化財課 (Nikkō City Cultural Properties Division) · 2025city.nikko.lg.jp/soshiki/10/1041/2_1/1229.html
    T1
  5. 05
    足尾銅山の産業遺産の紹介 (Introduction to the industrial heritage of the Ashio Copper Mine)日光市 教育委員会事務局 文化財課 (Nikkō City Cultural Properties Division) · 2024city.nikko.lg.jp/soshiki/10/1041/2_1/1232.html
    T1
  6. 06
    足尾銅山の鉱害防除遺産群 (Pollution Control Heritage Sites of Ashio Copper Mine), pp. 29 to 31 and 40 to 41日光市教育委員会 (Nikkō City Board of Education) · 2019city.nikko.lg.jp/material/files/group/42/kougaiboujoisangun_68593172.pdf
    T1
  7. 07
    通洞選鉱所における浮遊選鉱法の導入とその試行錯誤 (The introduction of froth flotation at the Tsudō Ore-Dressing Plant and its trial and error), in 足尾銅山跡調査報告書9, pp. 11 to 19日光市教育委員会 (Nikkō City Board of Education); Aoki Tatsuya and Miyamoto Fumio · 2019city.nikko.lg.jp/material/files/group/42/report9.pdf
    T2
